TOTPRadius LDAP Configuration

The principle behind it is that users will provide their AD or LDAP password together with the one-time passwords in the password field. TOTPRadius will then parse the password, split it into two parts and authenticate the OTP and if correct will send the AD/LDAP password part further to the AD/LDAP server configuration.

The order of authentication is exactly as stated above, OTP is checked first and AD after OTP is confirmed correct; this is done in order to prevent account lockouts during brute force attacks. Enabling LDAP Proxy on your TOTPRadius appliance allows implementing two-factor authentication for systems that do not natively support it, such as Cisco Meraki VPN, Cisco WLC and many others.

Configuring LDAP Proxy

LDAP Feature of TOTPRadius can be enabled on the "General settings" page. There are following LDAP related settings:

► LDAP (Enable/Disable) - Enables LDAP verification. This parameter is to be used for systems not supporting 2FA natively. If enabled the system will expect the OTP to be sent together with LDAP password. This setting controls authentication only, not enrollment.

► LDAP server - IP or FQDN of the LDAP server; if you need to specify multiple servers for redundancy, full URIs separated by space must be used. Example "ldap://192.168.200.208 ldap://192.168.200.209" or "ldaps://ADDC01.domain.local ldaps://ADDC02.domain.local " .
Starting from version 0.2.5 LDAPS is also supported, use ldaps:// protocol in the server address . Using LDAPS is possible  with FQDN only  - make sure you add the CA certificates used by your LDAPS server.

► LDAP username format - Username format. UPN suffix or leading domain name. %username% will be replaced by the actual username. Examples: %username%@domain.local or DOMAIN\%username%. This field cannot be left empty.

Enrollment

These settings are active even if the LDAP proxy feature are not enabled and can be used for self-enrollment using LDAP as the authentication

► Allow ldap enrollment (Enable/Disable) - Allow users to self-enroll their second factor (i.e. generate a QR key) by logging in with LDAP credentials.

► Allow ldap key change (Enable/Disable) - Allow users to re-enroll their second factor (i.e. generate a new QR key) by logging in with LDAP credentials.

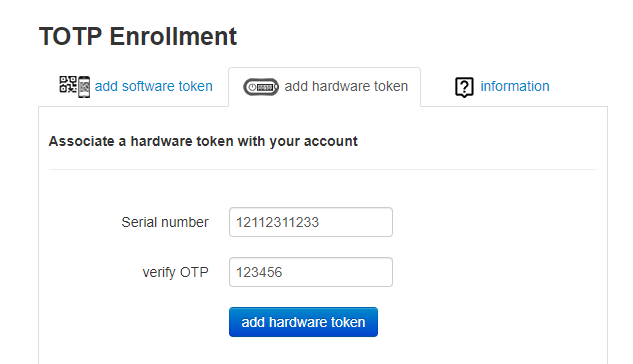

TOTPRadius LDAP Configuration► Allow ldap web enrollment (Enable/Disable) - Allow users to self-enroll their second factor (i.e. generate a QR key) by logging in with LDAP credentials via the public Web interface (as a part of VPN Portal). For security reasons, this portal allows only the initial enrollment and does not allow re-enrollment. >Starting from version 0.2.5 the web facing enrollment portal also allows associating a hardware token with user's account. The database of the hardware tokens should be added to the admin portal by the system administrator to allow the user to enroll the hardware token.


► Ldap intro text - This text will appear on LDAP web enrollment page. HTML tags are allowed.

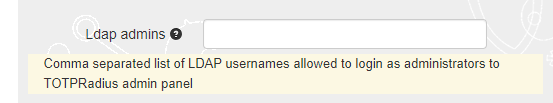

The LDAP configuration page has a field called "Ldap admins", which is not functional up until version 0.2.8 is released. For earlier versions, kindly leave this field empty.
